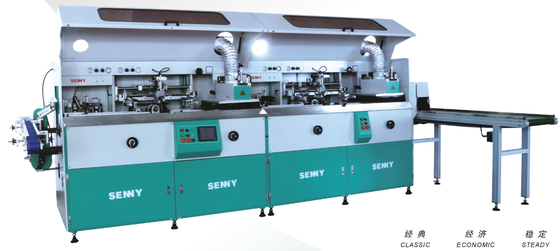

Fully Automatic 4 Color Screen Printing Machine CE Certified
Ürün ayrıntıları:
| Menşe yeri: | Dongguan Çin |
| Marka adı: | SENNY |
| Sertifika: | CE |
| Model numarası: | SL1688 |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 adet |
|---|---|
| Fiyat: | negotiable |
| Ambalaj bilgileri: | kontrplak paketi |
| Teslim süresi: | 45 gün |
| Ödeme koşulları: | T/T |
| Yetenek temini: | 10 adet/ay |
|
Detay Bilgi |
|||
| Otomobil sınıfı: | Tam otomatik | Baskılı renkler: | 4 Renk |
|---|---|---|---|
| Garanti: | 1 yıl | Plaka Tipi: | Ekran yazıcısı |
| Baskı kalitesi: | Yüksek Dayanıklılık | Satış sonrası servisi: | Video veya çevrimiçi |
| Vurgulamak: | CE Sertifikalı Şişe Ekran Yazıcısı, 4 Renk ve Dijital Kontrol Servo Sürücüsü | ||
| Vurgulamak: | 4 color automatic screen printing machine,fully automatic labeling machine,screen printing machine with warranty |
||
Ürün Açıklaması
Machine Features
- The machine is suitable for screen printing of various colors of UV ink, hot stamping, labeling and other decorations on round, oval, square and other shapes of plastic bottles.
- The machine has perfect transmission design, stable running, fast changeover, easy operation and it meets CE certification.
- The machine adopts well-known brand electrical components, easy-to-use touch screen and PLC control system, with reliable performance.
- The machine uses a highly customizable modular structure, which can be connected in a straight line to be a 1-8 color printing machine.
- The standard configuration of the machine is a screen printing and UV curing module, and the screen printing function can be selected to be interchangeable with hot stamping or labeling functions.
- The machine can be chosen to connect with independent hot stamping, labeling, quality inspection and other modules to combine into a multi-functional printing machine.
Optional Configuration
- Plasma surface treatment function •Hot stamping function. •Labeling function. •LED-UV curing function
Technical Parameters
| Model Machine | SL1666 | SL1688 |
|
Printing Speed
|
up to 85pcs/min | up to 85pcs/min |
|
Round Bottle Diameter
|
20-100mm | 20-100mm |
|
Oval Bottle Radius
|
25-250mm | |
|
Oval/Flat Bottle Width
|
20-130mm | |
|
Bottle Height
|
50–300mm |
50–300mm
|
| Max Length | 300mm | 300mm |
| Max Hight | 250mm | 250mm |
Printing your vision
