4-Color 45pcs/Min CNC Automatic Screen Printing Machine For Tube And Bottle
Ürün ayrıntıları:
| Menşe yeri: | Dongguan Çin |
| Marka adı: | SENNY |
| Sertifika: | CE SGS |
| Model numarası: | SRS1249 |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 adet |
|---|---|
| Fiyat: | negotiable |
| Ambalaj bilgileri: | Kontrplak paketi |
| Teslim süresi: | 45 gün |
| Ödeme koşulları: | T/T |
| Yetenek temini: | 10 adet/ay |
|
Detay Bilgi |
|||
| Otomobil sınıfı: | Tam otomatik | Plaka tipi: | Ekran yazıcısı |
|---|---|---|---|
| Satış sonrası hizmetler: | Video veya çevrimiçi | Basılı renk: | 4 |
| Vurgulamak: | Avantajları: Dört renkte yazdırabilir ve dairesel, üçgen, eliptik, altıgen ve düzensiz şekiller gibi | ||
| Vurgulamak: | 4-color automatic screen printing machine,CNC screen printing machine for tubes,45pcs/min bottle screen printing machine |
||
Ürün Açıklaması

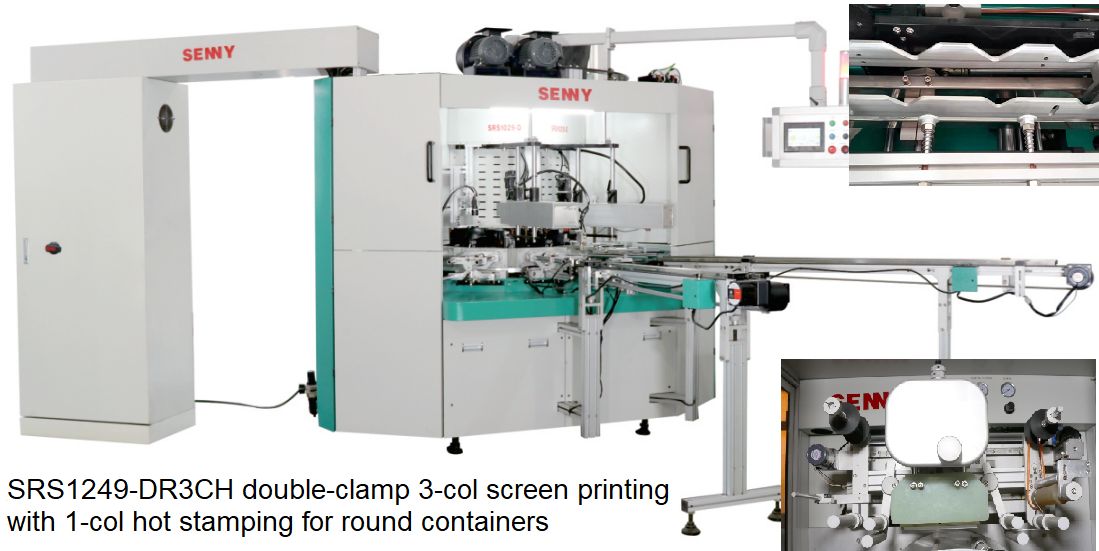

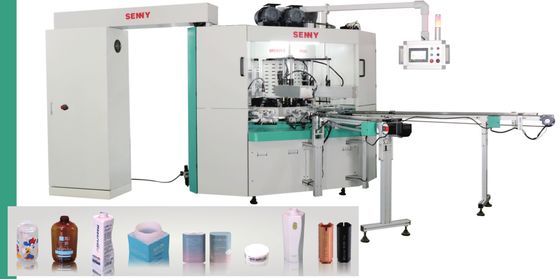

Machine Feature
- This machine is capable of performing screen-printing with multi-color UV inks, hot stamping, and other decorative processes on a variety of products. These include bottles, jars, caps, and items with irregular shapes, which can be made from materials such as plastic, metal, glass, and more.
- With an integrated turntable design, the machine accomplishes all printing tasks using the same set of fixtures. It boasts an impressive printing accuracy of up to ±0.1mm and ensures that products remain free from scratches during the process.
- Powered by a digitally controlled servo motor, the machine allows for 360-degree printing on products. In line with Industry 4.0 standards, it is also equipped with remote management and service functionalities.
Optional Configuration
- A function for loading and unloading products in a horizontal position.
- A function for examining the quality of finished products.
- A function for visual alignment of bottle bodies.
- An LED-UV curing system.
- A plasma surface treatment function.
- A function for visual alignment of bottle bottoms.
Technical Parameters
| Machine Model | SRS1249 |
| Printing Color | 4 |
| printing Speed | Up to 45 pcs/min |
| Diameter at 360 Degree | 13-600mm |
| Container Height | 20-200mm |
| Max.Printing Length | 200mm |
| Max.Printing Height | 160mm |
