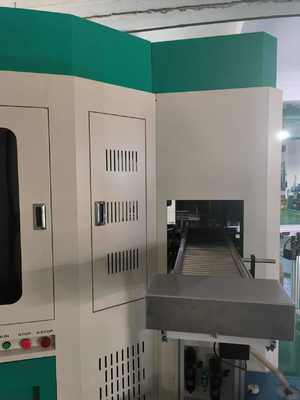

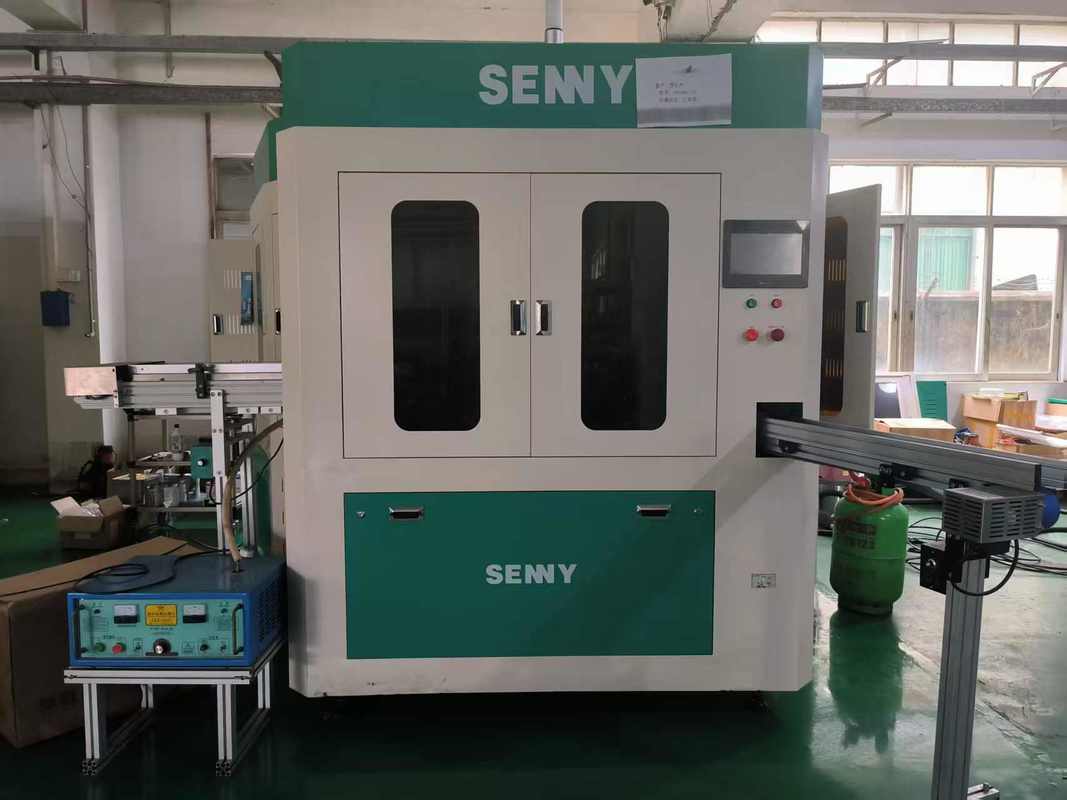

1+4 Color CNC Tube Screen Printing Machine with Digital Control and Remote Service CE SGS Certified for High-Speed Printing
Ürün ayrıntıları:
| Menşe yeri: | Dongguan Çin |
| Marka adı: | Senny |
| Sertifika: | CE,SGS |
| Model numarası: | SRS566 |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 adet |
|---|---|
| Fiyat: | negotiable |
| Ambalaj bilgileri: | Film sarma |
| Teslim süresi: | 45 gün |
| Ödeme koşulları: | T/T |
| Yetenek temini: | 10 adet/ay |
|
Detay Bilgi |
|||
| Min sipariş miktarı: | 1 adet | Fiyat: | negotiable |
|---|---|---|---|
| Ambalaj bilgileri: | Kontrplak paketi | Teslim süresi: | bir ay |
| Ödeme şartları: | T/T | Yetenek temini: | 10 adet/ay |
| Sertifika: | CE SGS | Paketleme detayları: | Kontrplak paketi |
| Satış sonrası hizmet: | Video veya çevrimiçi | Baskı rengi: | 1-4 renk |
| Vurgulamak: | servo motor tube screen printer,small tube printing machine,high-speed tube screen printer |
||
Ürün Açıklaması
1+4 Color Tube Screen Printing Machine For Small Tube Servo Motor 85pcs/Min
PRODUCT
Features
- Driven by a servo motor and controlled digitally, the machine operates stably with high printing accuracy. A component renowned for its rapid dynamic response, stable torque output, and exceptional low-speed high-torque performance—and regulated via a precision digital control system (e.g., a dedicated industrial PLC or motion controller).
- Equipped with both a fixed touch screen and a mobile wireless tablet control system, it supports remote services—enabling technical engineers to securely access the machine’s control system via encrypted network for remote diagnostics (identifying issues like component wear or parameter mismatches), optimizing operating parameters (e.g., fine-tuning printing pressure for different materials), or firmware upgrades. This eliminates on-site visits and cuts average maintenance response time by 60%.
- The machine adopts core electrical components from internationally renowned industrial brands to ensure long-term reliable operation. For instance, it uses Schneider low-voltage circuit breakers (with overload and short-circuit protection) for safe power distribution, Siemens S7-series industrial PLCs (with high anti-interference capability) for logic control and task scheduling, and Omron E3Z-series photoelectric sensors (0.1mm detection accuracy) for precise printing platform positioning.
Technical parameters
| Mechine Model | SRS566 |
| Printimg Color | 1+4 |
| Printing speed | Up to 85pcs/min |
| Soft Tube Diameter | 13-76mm |
| Soft Tube Length | 30-240mm |
| Max Printing Length | 220mm |
| Max Printing Height | 180mm |
| Printing Accuracy | ±0.1mm |
Configuration
- Unscrambling&feeding machine Hot stamping function plasma surface treatment function
- Visual registration function LED-UV curing function Finished product quality inspection function
UV curing
feeding device
Hot staming for small tube
Applications
SRS566 CNC Tubular UV Screen Printing Machine is a fully automatic CNC model, specifically designed for small-sized cosmetic and skincare plastic containers. Boasting a wide application range, it enables UV screen printing on various cylindrical tubes, including cosmetic, pharmaceutical, and toothpaste tubes, as well as plastic, metal, glass, and composite tubes.
Printing sample
About us
We export our machines to many overseas countries, such as the United States, Korea, Malaysia, India, Pakistan, Germany, Dubai, England, Philippines, Singapore, Vietnam, Brazil, Uzbekistan and so on.
Customers visit our factory
Our exhibition
