8 Station Soft Tube CNC 2-color Automatic UV Printing Machine 80 Pcs/Min

Ürün ayrıntıları:

Menşe yeri: Dongguan Çin
Marka adı: SENNY
Sertifika: CE SGS
Model numarası: SRS826

Ödeme & teslimat koşulları:

Min sipariş miktarı: 1 adet
Fiyat: negotiable
Ambalaj bilgileri: Kontrplak paketi
Teslim süresi: 45 gün
Ödeme koşulları: T/T
Yetenek temini: 10 adet/ay
En iyi fiyat İletişim

Detay Bilgi

Model numarası: SRS826 Baskı rengi: 2 renk
Plaka tipi: Serigrafi Baskı Makinesi Garanti: 1 yıl
Satış sonrası hizmetler: Video veya çevrimiçi Ambalaj detayları: Kontrplak paketi

Ürün Açıklaması

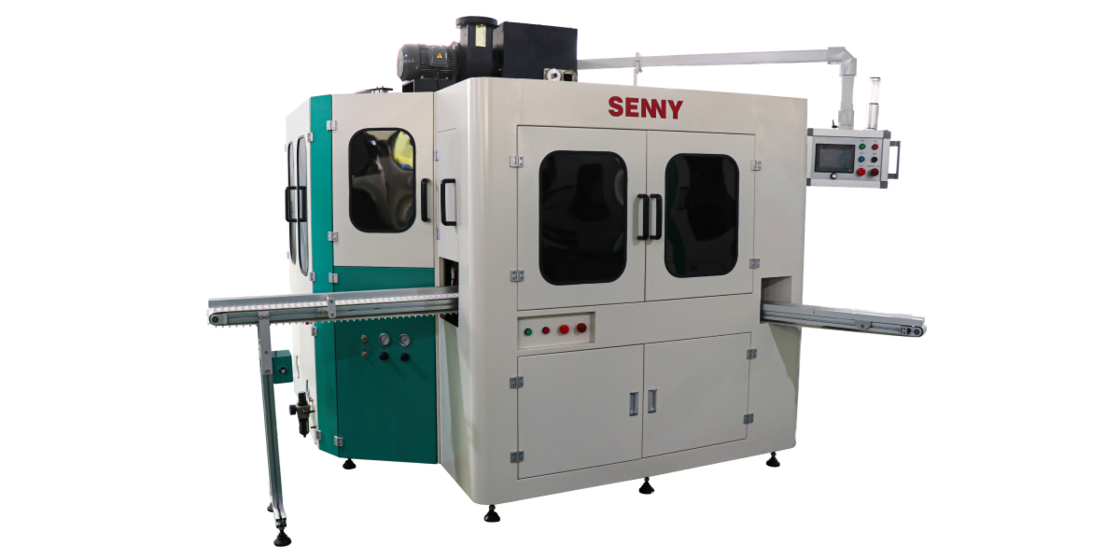

8 Station Soft Tube CNC 2-color Automatic UV Printing Machine 80 Pcs/Min





Machine Feature



  • The machine is suitable for screen printing of various colors of UV ink,hot stamping,varnishing and other decorations on plastic soft tubes.

  • The machine adopts an integrated turntable design,all printing functions are completed in the same set of fixture,the printing accuracy is as high as ± 0.1 mm.

  • The machine is driven by digital control servo motor to realize 360-degree printing of products,equipped with remote management and service functions(industry 4.0).

  • The machine adopts well-known brand electrical components, PLC control system,easy-to-use touch screen and wireless tablet operation,with reliable performance.

8 Station Soft Tube CNC 2-color Automatic UV Printing Machine 80 Pcs/Min 0







Optional Configuration



  • Unscrambling & feeding machine.              Hot stamping function.                             Plasma surface treatment function.



  • Visual registration function.                         LED-UV Curing function.                         Finished product quality inspection function.





Technical Parameters



Machine Model SRS826
Work Station 8
Printing Speed Up to 80 pcs/min
Soft Tube Diameter 15-75mm
Soft Tube Height 60-220mm
Max.Printing Length 220mm
Max.Printing Height 180mm
Printing Accuracy ±0.1mm

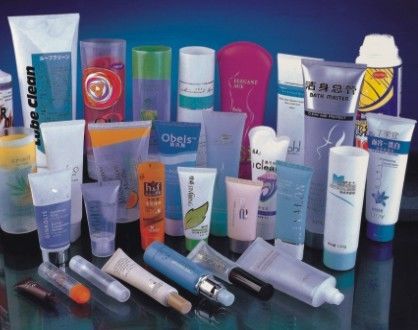

Printing Sample







8 Station Soft Tube CNC 2-color Automatic UV Printing Machine 80 Pcs/Min 1

8 Station Soft Tube CNC 2-color Automatic UV Printing Machine 80 Pcs/Min 2







About us:



     In 2020, Shenli provided Russian customers with a CNC 1-color glazing + 3-color screen printing UV curing production line for hoses. Since then, Shenli has been capable of offering customers the production capacity of various CNC multi-color screen printing, gold stamping and quality inspection machines for hoses.



8 Station Soft Tube CNC 2-color Automatic UV Printing Machine 80 Pcs/Min 3



8 Station Soft Tube CNC 2-color Automatic UV Printing Machine 80 Pcs/Min 4
